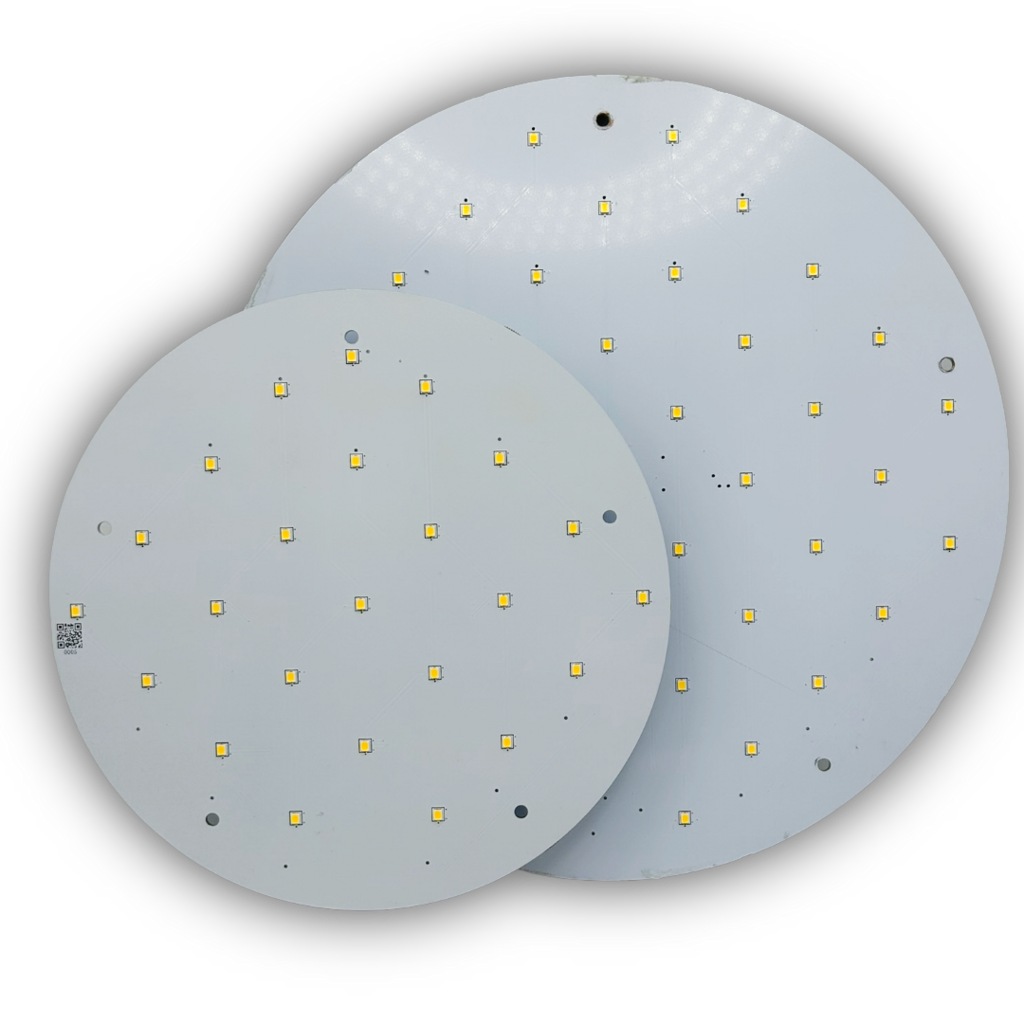

Two panel formats
Choose the 270 mm or 200 mm format to suit the sign or equipment enclosure.
Enlarge imageTraffic electronics
Traffic sign and signal backlight panels
Our backlight panels provide uniform white illumination for internally illuminated signs and traffic signal applications. The panel and power supply are combined to simplify installation within the equipment housing.
The range includes a 270 mm panel for 300 mm signs and a 200 mm format for more compact installations. The figures below describe one documented configuration; detailed specifications are available for each panel format.
Key features
Integrated power supply
A combined panel and supply reduces the number of separate assemblies to accommodate.
AC and DC supply operation
The documented configuration supports 28–230 V AC/DC operation, with panel and supply options to suit the equipment.
Configurable brightness
Light output can be configured to suit the application and operating environment.
Technical specifications
Product specifications and configuration options for your equipment.
Request technical information| Specification scope | Figures describe one documented configuration; specifications are available for each panel format |
|---|---|
| Range formats | 270 mm panel for 300 mm signs; 200 mm format also available |
| Input voltage | 28–230 V AC/DC |
| Power consumption | 8–16 W |
| Operating temperature | -20 to +60 °C |
| Storage temperature | -20 to +85 °C |
| Colour temperature | 6000 K typical |
| Viewing angle | 120° typical |
| Light output | White backlighting |
| Power supply | Integrated with the backlight panel |
| Brightness | Configurable to application requirements |
Suggested traffic applications
Internally illuminated traffic signs
Backlighting within a suitable sign assembly.
Signal and roadside display equipment
White illumination for housings designed around a compact integrated panel.
Integration and available options
We offer 270 mm and 200 mm panel formats with configurable brightness, making it easier to match the backlight to the sign face, display and available enclosure space. The integrated power supply reduces the number of separate assemblies within the housing.
We can help with panel selection, optical layout, mounting and electrical connections, including the environmental requirements of the finished sign or display.
For internally illuminated regulatory signs, our support can include a review of the optical arrangement and the applicable sign requirements. We can provide the relevant product, TOPAS and UKCA information for the selected configuration and its intended use.
Options and customisation
Panel format, brightness and integration options can be discussed around your sign design, required light output and enclosure arrangement.
