Rotating tactile indication
Consistent rotational output provides tactile feedback during the appropriate pedestrian signal phase.
Enlarge imageTraffic electronics

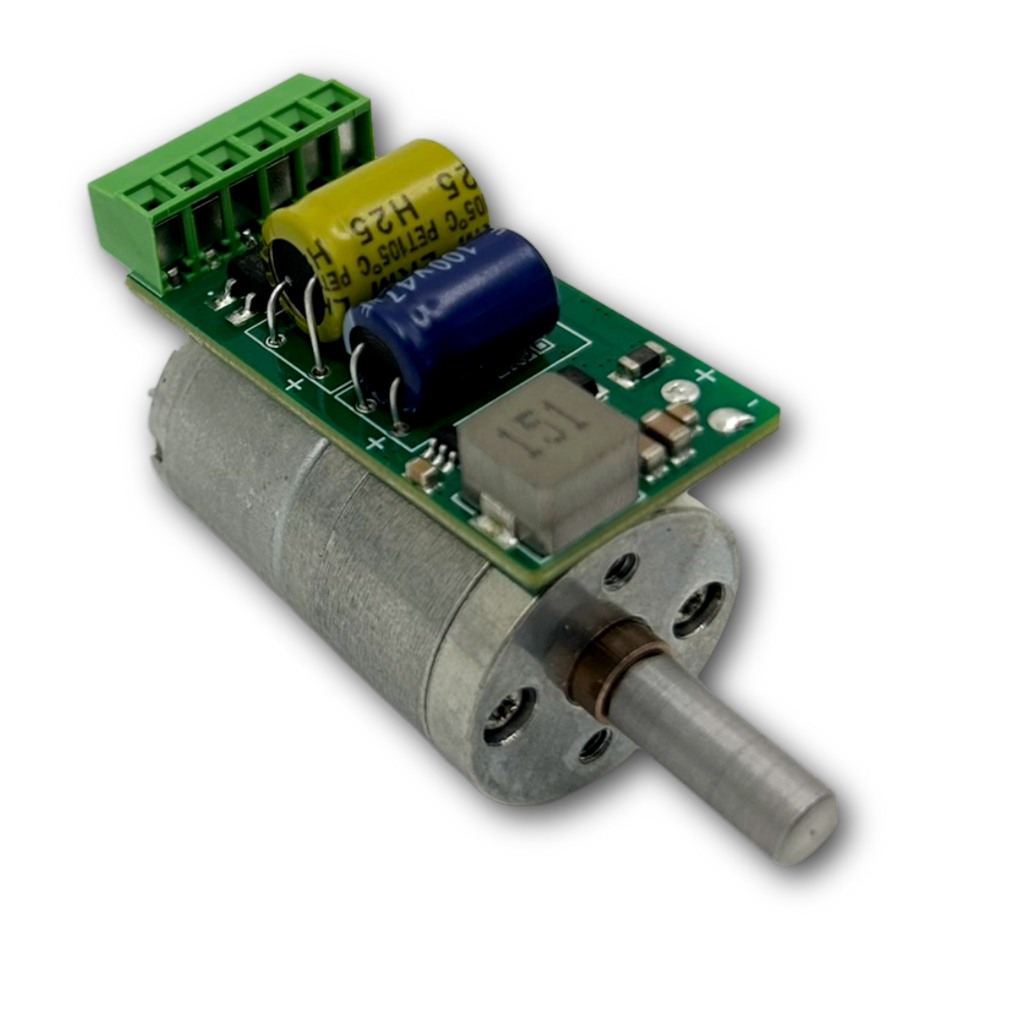

Pedestrian crossing tactile motor
Our tactile motor assembly drives a rotating tactile indicator for visually impaired pedestrians at controlled crossings. It is designed for integration into pedestrian push-button equipment.
The compact version places the PCB at the side of the motor assembly, helping it fit into enclosures where internal space is limited. An enable input and fault output support connection to the traffic control system.
Key features
Compact mechanical arrangement
A reduced footprint and side-mounted PCB support integration into compact pedestrian units.
Flexible supply range
10.8–58 V AC/DC operation supports a range of equipment power supplies.
Control and monitoring
Enable and fault connections provide interfaces for the surrounding control equipment.
Technical specifications
Product specifications and configuration options for your equipment.
Request technical information| Supply voltage | 10.8–58 V AC/DC |
|---|---|
| User indication | Rotational tactile output |
| Control interface | Enable input |
| Monitoring interface | Fault output |
| Mechanical arrangement | Compact assembly with side-mounted PCB |
| Intended installation | Integration into pedestrian push-button equipment |
Suggested traffic applications
Pedestrian push-button units
Rotating tactile indication within suitably designed crossing equipment.
Compact pedestrian enclosures
Installations that benefit from a smaller motor and PCB arrangement.
Integration and available options
The compact motor and side-mounted PCB help accommodate the assembly within pedestrian push-button housings. The enable input and fault output support connection to the controller, and we can assist with mounting, indicator and enclosure integration.
The design focuses on repeatable rotating indication, durability and long-term operation in pedestrian crossing equipment. We can provide environmental and connection information for the selected assembly.
Our support covers the relevant TOPAS 2508 tactile-equipment requirements and the UKCA or other compliance documentation applicable to the assembly and destination market.
Options and customisation
We can review mounting and controller-interface options, including adaptations for different push-button enclosures and tactile indicator arrangements.
Discuss your equipment with us
Tell us about the supply, interfaces and enclosure your project needs.
Enquire about the tactile motor
